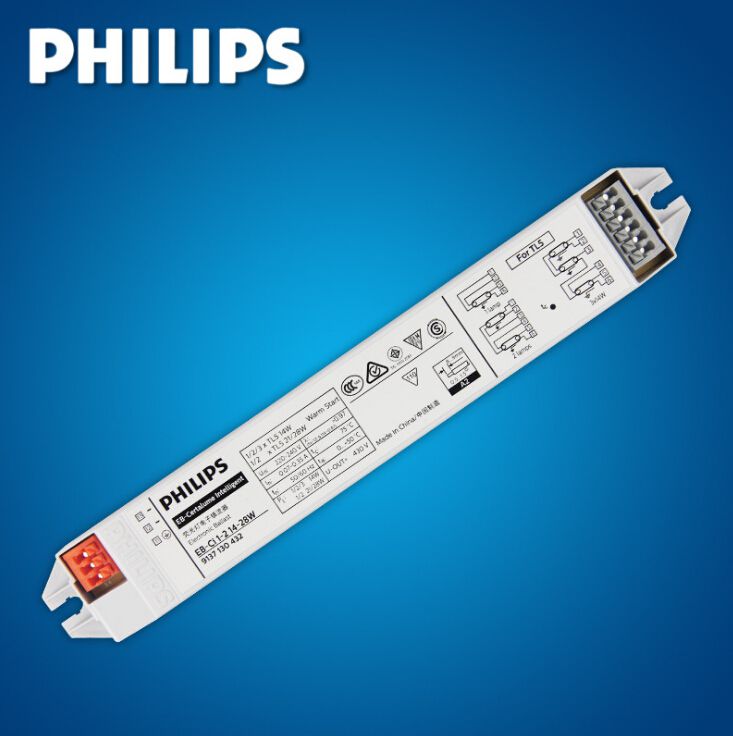

Philips ballast EB-Certalume for TL5 lamps
Affordable, reliable, high-frequency electronic ballast for TL5 fluorescent lamps, ideal alternative to electromagnetic fluorescent systems . The cost-saving and reliable EB-C has energy efficiency class A2, and its robust design meets all necessary international standards for safety and EMC. The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application
Applications
Designed for applications where lamps burn for a long period of time and switching cycle (on/off) is infrequent. Typical areas of application include:, Professional indoor applications (e.g. offices and hotels), Department stores, shops, supermarkets and public area’s, Indoor lighting boxes, Homes
Features
Energy efficient CELMA A2, high power factor 0.97 with THD18%
Safety according to IEC 61347-2-3, and EMC compliant with EN 55015 2006 + A1 2007
Robust design for 45,000 hours lifetime at Ta 50 °C and avg. 6,000 on/off switches on one lamp
Quick warm, flicker-free lamp start (1.0 s), no ignitor needed
Wide voltage range for ignition and operation (165-253 V)
